Full specification
- Frame: High modulus carbon fibre. Embedded electric and hydraulic lines. 7075 CNC machined replaceable rear derailleur hanger
- Fork: Double crown carbon fibre forks with integrated hydraulic line and calliper mounting made from high strength and high modulus carbon fibre. 7075 CNC machined inserts.
- Handlebar: One piece carbon fibre handlebars and integrated stem with internal hydraulic and wire routing made from high strength and high modulus carbon fibre. Stem 85mm, Bars 150mm drop x 77mm reach, 40-42-44-46cm wide.
- Headset: Factor, combined needle roller/angular contact ball bearing
- Shifters: Shimano Dura-Ace 7970 Di2 STI, 20 speed
- Front Derailleur: Shimano Dura-Ace Di2 braze on
- Rear Derailleur: Shimano Dura-Ace Di2 SS short cage
- Crankset: Factor, 7075 CNC machined 167.5mm, 170mm, 172.5mm, 175mm, 177.5mm, 180mm
- Chainwheel: Shimano Dura-Ace, 53/39T
- Bottom Bracket: Factor, Titanium shaft, ceramic bearings, 90mm width
- Chain: Shimano Dura-Ace 7900 10-speed
- Freewheel: Shimano Dura-Ace 7900 cassette, 12-27T
- Brake Levers: Shimano Dura-Ace 7970 Di2 STI

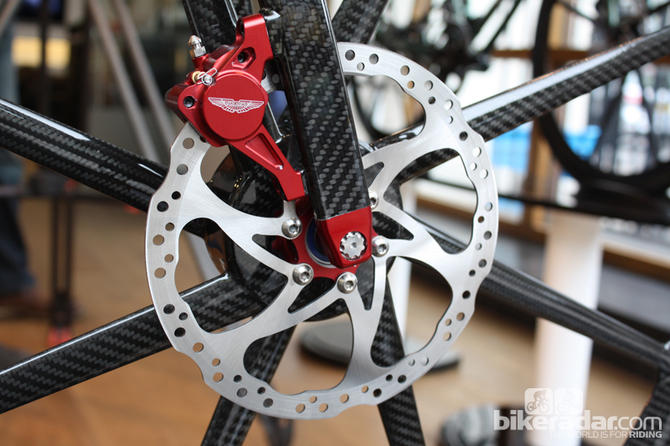

- Brakes: Steel hydraulic disc, front – 180mm, rear -140m
- Electric System: Embedded wiring system, Factor re-chargeable battery pack
- Lighting: High intensity front LED integrated into handlebars. Red rear LEDs integrated into seat tube. Operated from switches on control lever housings
- Hydraulic System: Shimano levers connected to Hope V-Twin remote master cylinder mounted in handlebar assembly
- Saddle: Fizik Antares braided rails
- Saddle Mount: Factor, shim height adjustable
- Wheelset: 700C Factor front and rear wheelset. Factor hubs, ceramic bearings and preload adjustment
- Tyres: Continental GP4000 Tubular 700C-22mm
- Finish: Seven options and customisable option
- Weight: 9.5 kg/ 20.94lb
